VMO's stuff (LMP1 Released!).

[vmo]

In the UVMap unwrap, in the rear part, I need to press hold/yes or yes only when I select collapse to?

[vmo]

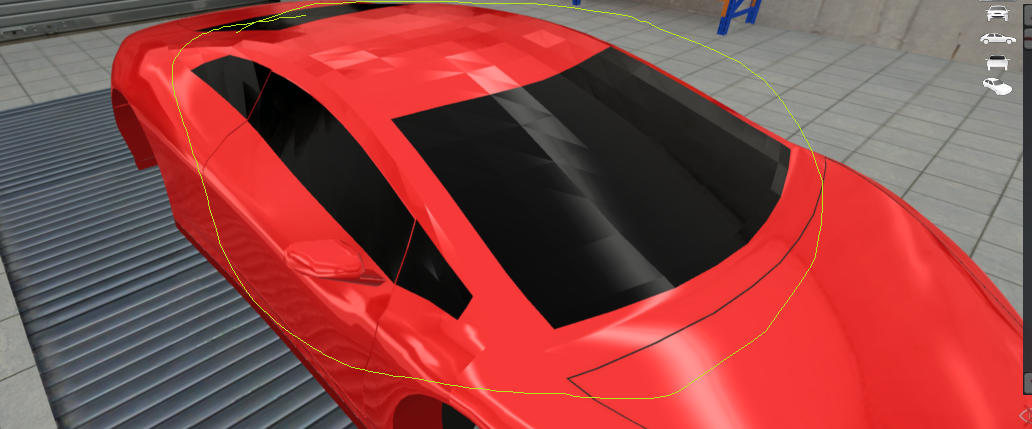

Why ingame the car looks with these polys?

Sin título.png (600.14 KiB) Viewed 5239 times

[Sillyworld]

In the UVMap unwrap, in the rear part, I need to press hold/yes or yes only when I select collapse to?

Yes, but obviously before the skinning

Why ingame the car looks with these polys?

Make sure you set the smoothing groups correctly.

EDIT: Also, the cars have some thin line of plastic or some materials between the windows and the car body or other windows. Even the huracan

[Oskiinus]

I KNEW IT I KNEW SOMEONE SAID HURACAN XDD

[vmo]

How can I solve this 3ds max error?

I reinstalled 3ds max a few times, I formatted the computer, and I had the same proble. (3ds max 2013 32 bits original).

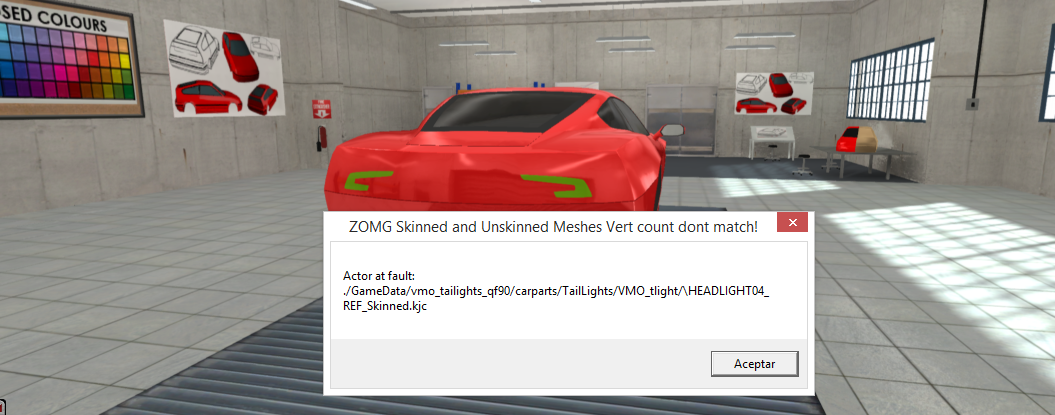

When I need to export a object with a skin modifier, and I export with mesh, skeletons and bones, the 3ds max crashes, and the headlights or taillights, for example, ingame, appears a mismatch poly counter, and the game closes.

With the bodies, the morphing zones doesn't appear selected. In the GT-R body, a user exported me the body (without touching anything), with 0 errors, and the problem is solved.


How can I solve the issue?

I'm using windows 8.1 x64.

[Sillyworld]

I think I got that error once, (poly mismatch...). To export the thing, select only the body (not the bones, which need to be separated objects), then click export selected and export it. Now, without selecting or moving other thing, click export selected again and export the unskinned version.

If you modify the mesh, you have to re-export it (unskinned and skinned) and only the mesh, without the bones.

You can send me the file, and I can do a video showing you the process of exporting, and you can see if you're doing something wrong or if it is your computer that can't handle the process.

[vmo]

I think I got that error once, (poly mismatch...). To export the thing, select only the body (not the bones, which need to be separated objects), then click export selected and export it. Now, without selecting or moving other thing, click export selected again and export the unskinned version.

If you modify the mesh, you have to re-export it (unskinned and skinned) and only the mesh, without the bones.

You can send me the file, and I can do a video showing you the process of exporting, and you can see if you're doing something wrong or if it is your computer that can't handle the process.

I followed the same steps and i Had the same problem. I sent to you a file.

[vmo]

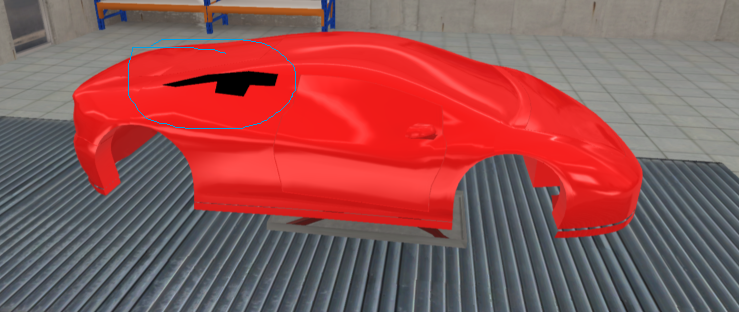

Why I have this black mate polys if all car materials are ECS_BODY (I make this because with all materials mapped I had the same issue; if I quit all materials, all car is pink)?


[vmo]

I can send via PM the car files if is necessary.

[Sillyworld]

It seems like theres something wrong with the materials assigned in 3DS max. Check if they're rear body material. And that those polygons are in the same smoothing group. and finally, and just in case, check the UV map. When I did my body sometimes small polygons of the rear ended up in the middle-part-uv-map.

[TrackpadUser]

The black patches happen when two vertices are occupying the same space. Welding all vertices with a max distance of 0 should fix this.

[vmo]

Montes and me I will desire a happy 2016!

[vmo]

(For my 1002 reply)

Which are the axis in the bones.lua respect the car?

[thecarlover]

In the bones file, Z is forward and back, Y is up and down, X is left and right.

[vmo]

Thanks.
