Engine Recreation Thread

Since ConeDodger isn't doing his engine recreation series anymore, I need my real engine fix. So, I built a series of engines from real cars. I will post them on here.

Anyone can post these engines on this thread.
<<

gt1cooper

User avatar

Naturally Aspirated

Posts: 390

Joined: Tue Dec 24, 2013 5:13 am

Location: Florida, US

Cars: 1969 Mustang GT
2014 Ram 1500 Hemi
2009 Infiniti M35s
2014 VW CC
2013 BMW 640i

Post Sun Mar 02, 2014 2:22 pm

Re: Engine Recreation Thread

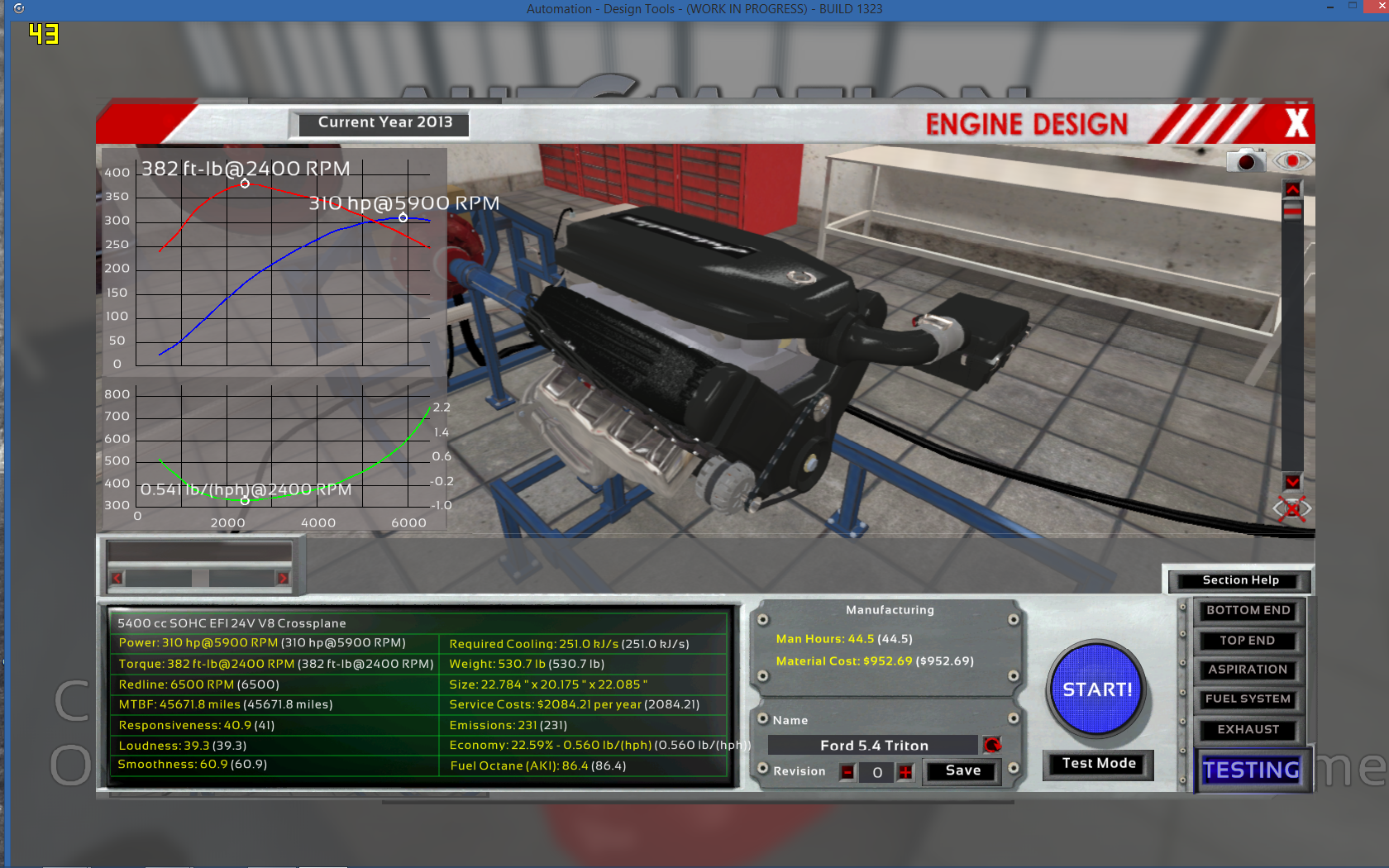

First, an F150 5.4 Triton engine; the engine I have in my own truck, albeit much less powerful due to this one being stock
Attachments
Ford 5.4 TritonRev0.lua
(42.67 KiB) Downloaded 159 times
Screenshot (20).png
Screenshot (20).png (1.84 MiB) Viewed 8353 times
<<

Razyx

User avatar

Naturally Aspirated

Posts: 394

Joined: Thu Jan 09, 2014 5:59 am

Location: Spain

Cars: Renault Megane 1.4 TCe

Post Mon Mar 03, 2014 6:11 am

Re: Engine Recreation Thread

Hi!
I've tried to emulate an H4J-A700 from Renault, engine that goes in my Megane 1.4TCe.
Not a crazy stuff but an interesting 'downsized engine'; 1.4l Inline 4 plus a little turbo (without DI).

Don't know the turbo specs so I've focused on the power curve...


The emissions also will not match with the original values (153 g/km).

ED: I forgot to attach the file.
Attachments
1.4L H4J TCeRev2.lua
H4JA700
(70.69 KiB) Downloaded 139 times
ManHell Automotive in Automation Hub with some exclusive cars.
<<

nialloftara

User avatar

Supercharged
Supercharged

Posts: 1983

Joined: Wed Feb 05, 2014 2:07 pm

Location: Northeast USA

Cars: 2006 Scion Xb

Post Thu Mar 06, 2014 12:21 pm

Re: Engine Recreation Thread

My attempt at some Datsun z engines

They are close but not perfect.

a 1970 L24 out of a 240z


a 1981 L28E from a 280z I've rechecked my numbers and this one is way off, my apologies and I will fix as soon as I can.


and a 1983 L28ET from a 280zx
Attachments
L28tRev0.lua
(69.28 KiB) Downloaded 147 times
L28Rev0.lua
(45.02 KiB) Downloaded 131 times
L24Rev0.lua
(42.59 KiB) Downloaded 141 times
Last edited by nialloftara on Thu Mar 06, 2014 9:39 pm, edited 2 times in total.
Chief designer and CEO, Centauri motor works, Centauri Performance Vehicles (CPV)
"Centauri: The Stars Are Within Your Reach."
Centauri engines Centauri cars
CPV engines CPV cars
Company ID: 1943047
<<

muddman

Posts: 53

Joined: Sat Jun 15, 2013 9:32 am

Cars: A Golf Buggy!

Post Thu Mar 06, 2014 4:28 pm

Re: Engine Recreation Thread

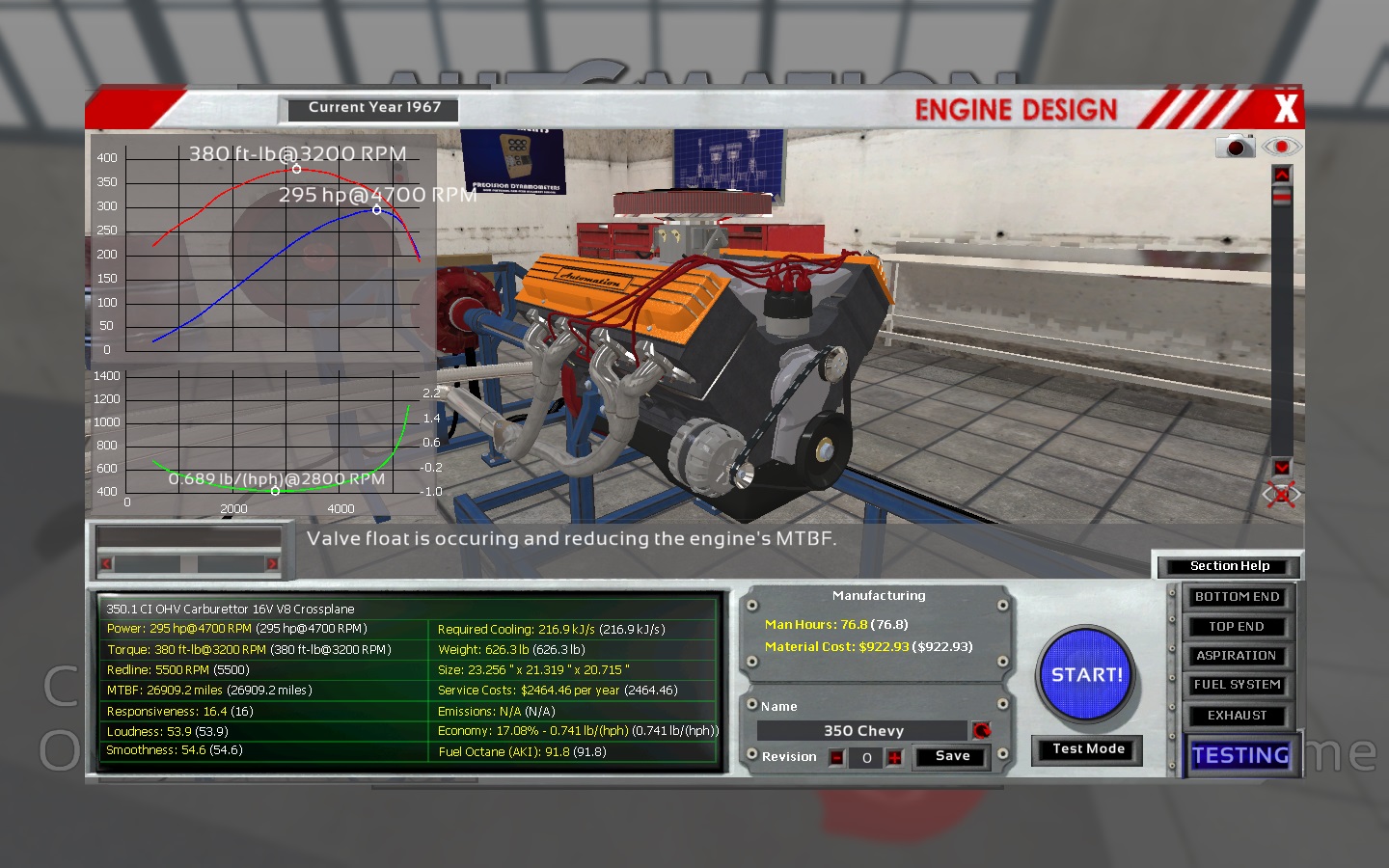

a 1967 350 chevy what do you think.
Attachments
350 ChevyRev0.lua
(37.44 KiB) Downloaded 127 times
Automation Launcher 2014-03-05 23-22-40-46.jpg
Automation Launcher 2014-03-05 23-22-40-46.jpg (387.89 KiB) Viewed 8285 times
<<

nialloftara

User avatar

Supercharged
Supercharged

Posts: 1983

Joined: Wed Feb 05, 2014 2:07 pm

Location: Northeast USA

Cars: 2006 Scion Xb

Post Fri Mar 07, 2014 6:47 am

Re: Engine Recreation Thread

Looking for help with my datsun z engines (see posts above), http://zhome.com/History/zcarperf.html the power figures are during the gross to net change over and I'm trying to figure out approximately how much power these cars really made when I redo the 280z tonight.
Chief designer and CEO, Centauri motor works, Centauri Performance Vehicles (CPV)
"Centauri: The Stars Are Within Your Reach."
Centauri engines Centauri cars
CPV engines CPV cars
Company ID: 1943047
<<

Gooles

User avatar

Naturally Aspirated

Posts: 31

Joined: Sat Jan 25, 2014 2:56 pm

Location: Ontario, Canada

Cars: Now I have 2 Sunfires to take care of. One runs, but it's a manual. Not used to driving those yet.

Post Sat Mar 08, 2014 11:44 am

Re: Engine Recreation Thread

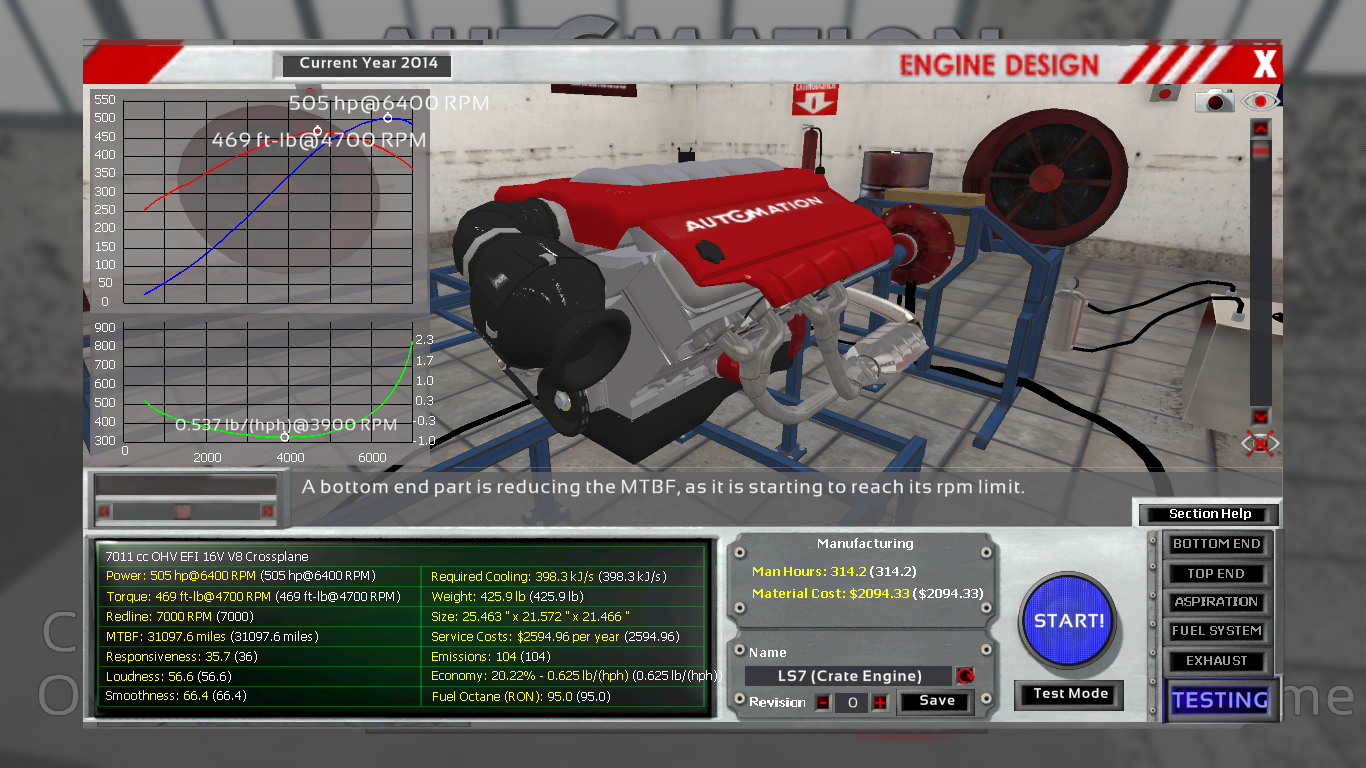

Here's a half-decent attempt to recreate GM's LS7.

Before one of you gets on my butt for quality slider abuse, let me do some math and compare.
Chevy sells the LS7 as a crate engine for $17,129 (U.S.) Online.
I'll use an average rate of 20$ per production hour.
314.2 production hours times 20 = $6284 in man hours
Material costs is $2094.33. 6284 plus 2094.33 = $8378.33.
So this engine's production cost is about half the price that Chevy sells it at. Seems realistic, doesn't it?

I know this engine wasn't made in 2014,
but if i select a date below it then valve lift becomes severe.
Of course at dates like 2008, setting the quality of the heads until valve lift is not a problem nearly quadruples the man hours,
making it unrealistic. Having no tech pools makes me have to set the date higher as a workaround.
In addition I have no control over little tidbits in the intake, block, heads,
and exhaust headers because Automation isn't THAT in depth.

How do you all think i did?
You can compare this to the real thing at:
http://www.chevrolet.com/performance/cr ... s/ls7.html
http://www.corvettemuseum.org/specs/2006/LS7.shtml
Attachments
Ls7 Recreation.png
In all of it's glory.
Ls7 Recreation.png (1.27 MiB) Viewed 8230 times
CEO and Co-Founder of Motasan Motors, a group of Canuck hooners who decided they wanted to make cars.

I do not say Aboot or live in an Igloo, go away.
<<

USDMFTW

User avatar

Naturally Aspirated

Posts: 397

Joined: Wed Jan 02, 2013 5:00 pm

Cars: 2000 Saturn SL2
Look i have DOHC :P

Post Sat Mar 08, 2014 3:40 pm

Re: Engine Recreation Thread

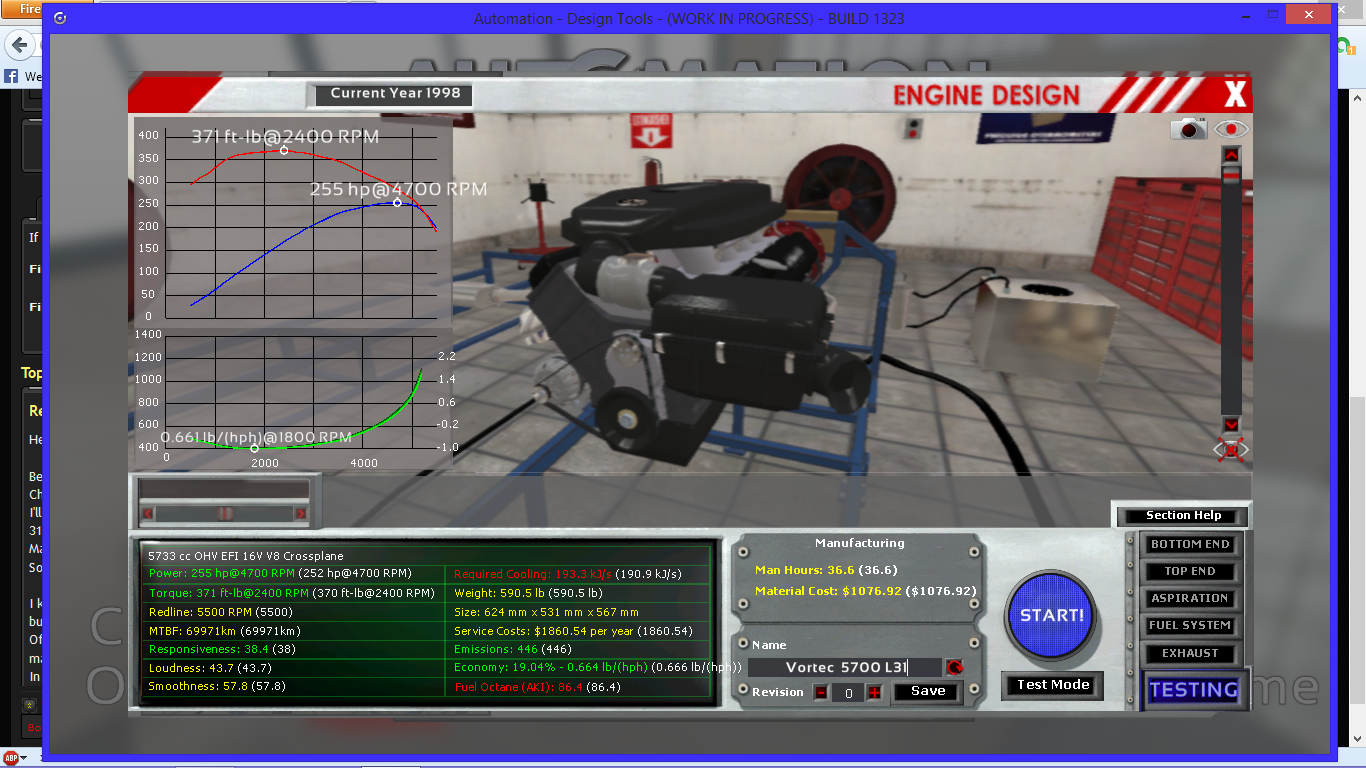

Vortec 5700 L31 One of many Gms 5.7s that they horribly underrated.
Screenshot (39).png
Screenshot (39).png (1 MiB) Viewed 8223 times
<<

Breno

User avatar

Posts: 52

Joined: Sat Feb 08, 2014 1:16 pm

Location: Brasil

Post Fri Mar 14, 2014 11:46 am

Re: Engine Recreation Thread

Original Engine (C16SE BR Version):
http://www.vrum.com.br/Autos?tp=VRUM&name=db:FichaTecnica&fabricante=Chevrolet&modelobase=CORSA&anomodelo=2000&codigo=004004-5

L4 - 1.6L (1.598 cm3)
Overhead Cam - 2 valves per cylinder
Bore x Stroke: 79.0 x 81.5 mm
Compression: 9,4
Fuel System: Injection Multi Point
Power: 92 cv / 5.600 rpm
Torque: 13,0 kgfm / 2.600 rpm
Block: Cast Iron
Head: Aluminum

My engine in Automation:


90.7hp = 91.95cv or 92cv
Last edited by Breno on Sat May 10, 2014 10:32 am, edited 1 time in total.
Name of Car Company: Brets Company
Website: http://brenofelipet.wix.com/workinprogress
Forum thread: http://tinyurl.com/Bretscompany / Engines topic http://tinyurl.com/BretsEngines
Established: 26th January, 1929.
Company ID: 1929000
<<

07CobaltGirl

User avatar

Queen of Track Building

Posts: 1613

Joined: Sun Dec 08, 2013 11:47 am

Location: Atlanta, GA, USA

Cars: Chevy Cobalt

Post Wed Apr 09, 2014 3:55 pm

Re: Engine Recreation Thread

Here is my collection of Small-Block Chevy's from the beginning to the end.

With the exception of the 302, these are all cast log, pushrod, overhead valve carburated engines running regular leaded gasoline and have at least one muffler installed. A couple of them still require some tweaking, as well.

The beginning of the legend, a 1955 265 V8 2bbl

1957 283 2bbl

1962 327 4bbl

1966 302 4bbl

1967 350 2bbl

1970 400 2bbl

1974 262 2bbl

1976 305 2bbl
Attachments
350SBC67 MidRev0.lua
350 ci
(35.25 KiB) Downloaded 116 times
265SBC55 StandardRev0.lua
265 ci
(32.12 KiB) Downloaded 107 times
262SBC74 StandardRev0.lua
262 ci
(32.2 KiB) Downloaded 105 times
<<

gt1cooper

User avatar

Naturally Aspirated

Posts: 390

Joined: Tue Dec 24, 2013 5:13 am

Location: Florida, US

Cars: 1969 Mustang GT
2014 Ram 1500 Hemi
2009 Infiniti M35s
2014 VW CC
2013 BMW 640i

Post Thu Apr 10, 2014 12:09 am

Re: Engine Recreation Thread

That's pretty impressive. Nice job!
Soon, I will try to post a couple comparable ford engines.
<<

07CobaltGirl

User avatar

Queen of Track Building

Posts: 1613

Joined: Sun Dec 08, 2013 11:47 am

Location: Atlanta, GA, USA

Cars: Chevy Cobalt

Post Thu May 08, 2014 12:23 pm

Re: Engine Recreation Thread

So, I've been on a bit of a BMW kick of late. I have a number of BMW engines, 4 cylinder, 6 cylinder, and a few V8's, N/A and Turbo. Lets give them a look! Since none of these engines are actually mine, I will include them to download for your own game, of course!

First, the V8's. All of these are MPFI, I hope, except the S63 which is HPI (direct injected). S63 was really tough since I am not good at tuning turbo engines. Maybe someone else can do a better job than I did. It also has a normal twin-turbo instead of the cross-engine intake and exhaust manifolds used in the real car, which probably isn't as much of a factor as my poor tuning skills.

N62 B36
N62 B40
N62 B44
N62 B48
N63 B44
S63 B44
S65 B40
S65 B44
BMW-V8s.zip
BMW V8 engines
(85.62 KiB) Downloaded 107 times


Next the Inline 4's.
S14 B23 EVO2
S14 B25 EVO3
S14-I4s.zip
BMW I4 engines
(18.99 KiB) Downloaded 90 times


And finally, my favorite M3 engine, the S50 B30!
BMW-I6's.zip
BMW I6 engines
Bonus S55 B30 (not pictured) Turbo!
(42.54 KiB) Downloaded 104 times
<<

vmo

User avatar

Naturally Aspirated

Posts: 1178

Joined: Wed Jul 04, 2012 4:29 am

Location: Spain

Cars: A undestructable Toyota with 1ZR FAE engine, Honda Civic VTi EG6, Mazda RX7 fc

Post Fri May 09, 2014 1:57 am

Re: Engine Recreation Thread

Razyx wrote:Hi!
I've tried to emulate an H4J-A700 from Renault, engine that goes in my Megane 1.4TCe.
Not a crazy stuff but an interesting 'downsized engine'; 1.4l Inline 4 plus a little turbo (without DI).

Don't know the turbo specs so I've focused on the power curve...


The emissions also will not match with the original values (153 g/km).

ED: I forgot to attach the file.

The official CO2 values doesn't match with the reality (the real TCe CO2 is 150-155 g/km), similar with the fuel consumption.
Company: Montes Cars
Company ID: 1940001
Visit the brand models http://automationgame.com/phpBB3/viewtopic.php?f=35&t=3995
In AutomationHub.net: http://www.automationhub.net/company-ca ... mpanyID=18
My YouTube Channel: https://goo.gl/1MtRpd
<<

UltimateBMWfan

User avatar

Turbocharged
Turbocharged

Posts: 360

Joined: Wed Aug 29, 2012 5:34 pm

Location: Germany

Cars: 2008 BMW M3 Coupe

Post Wed May 14, 2014 9:25 am

Re: Engine Recreation Thread

Pinned as we've been missing a replica thread for engines.

Thanks!
Car companies:
BMC AG |

<<

KielEire

User avatar

Supercharged
Supercharged

Posts: 93

Joined: Thu Apr 17, 2014 3:44 pm

Location: Livermore, CA

Cars: 1996 Ford Ranger 4.0L V6

Post Wed May 14, 2014 10:04 am

Re: Engine Recreation Thread

Where do you all find the info for these?!? :)
